Rosemary Manor
Four 2 Bedroom Downtown Luxury Homes

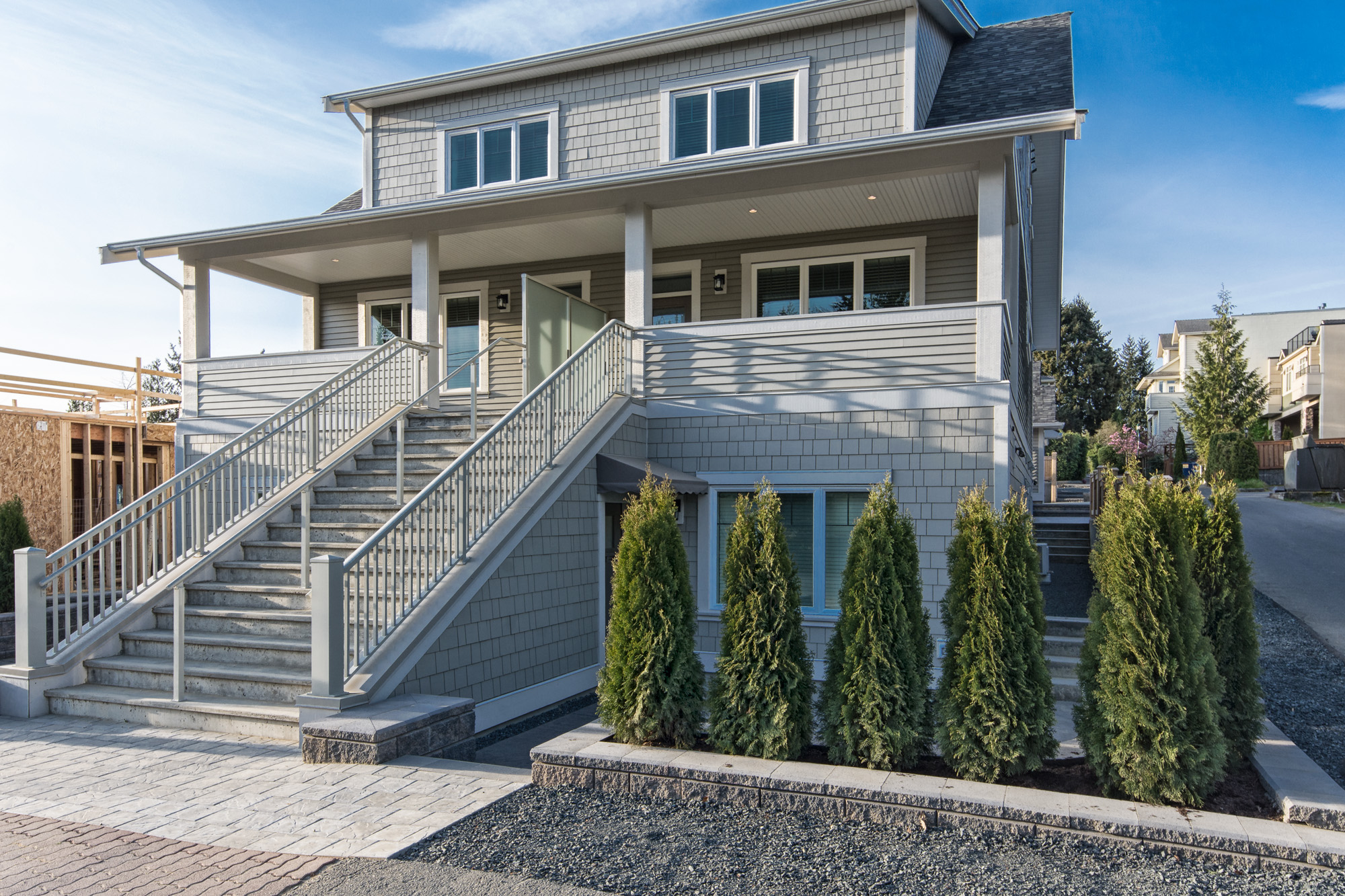

184 First Ave West
Lower Unit

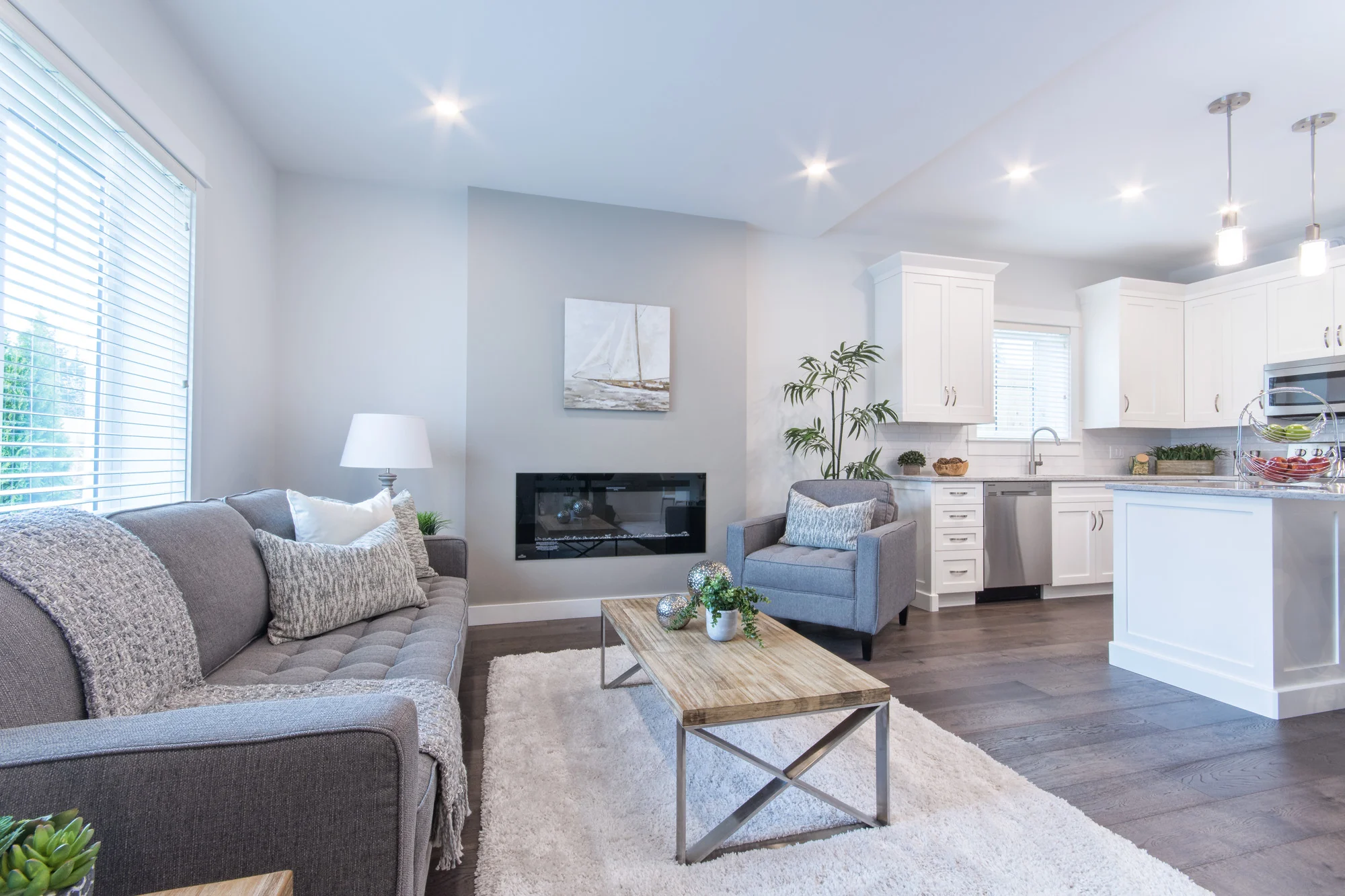

Lower Unit - Living Room
Lower Unit - Dinning Room & Kitchen
Lower Unit - Kitchen

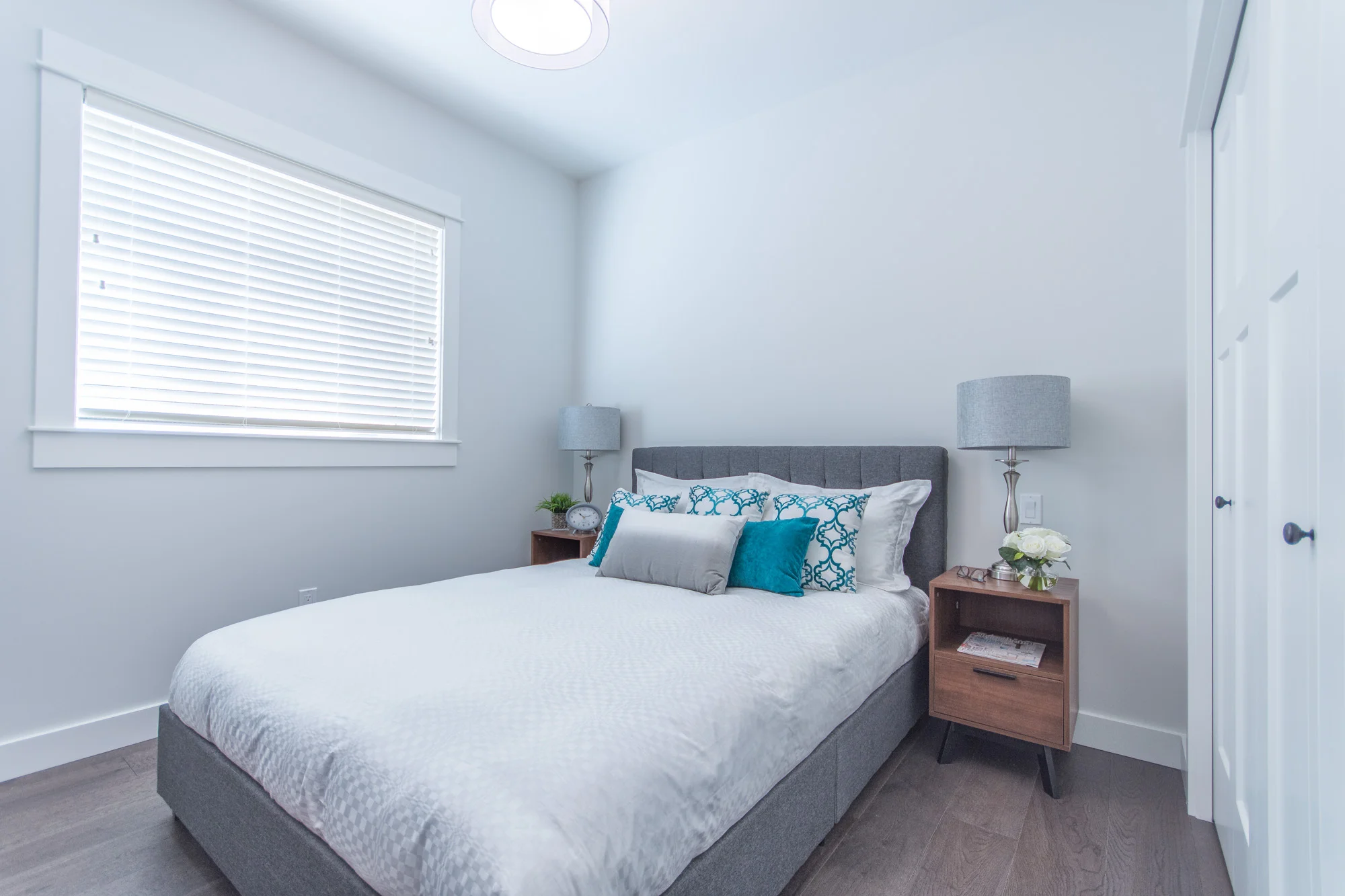

Lower Unit - Bedroom

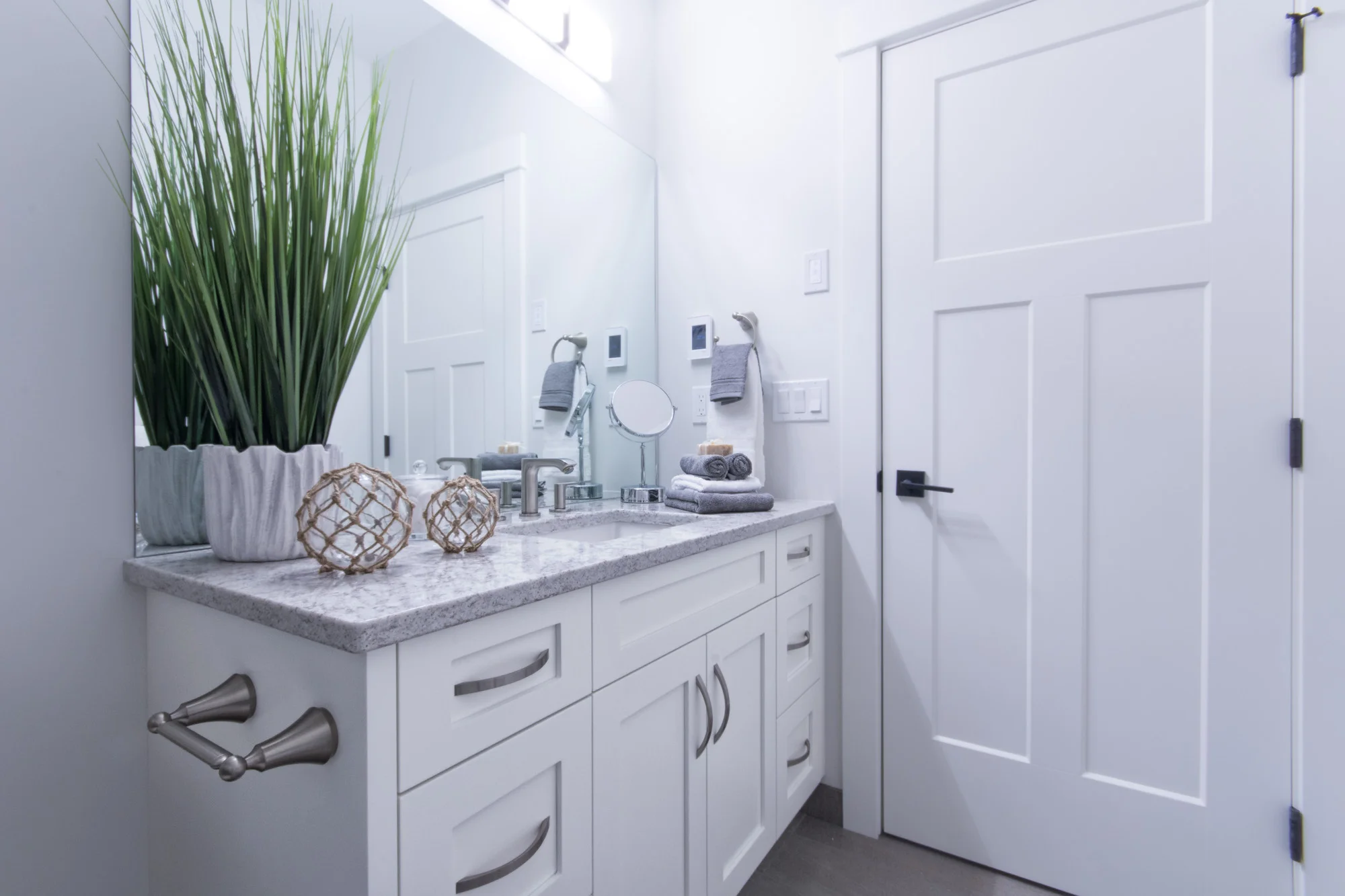

Lower Unit - Bathroom
UPPER UNIT

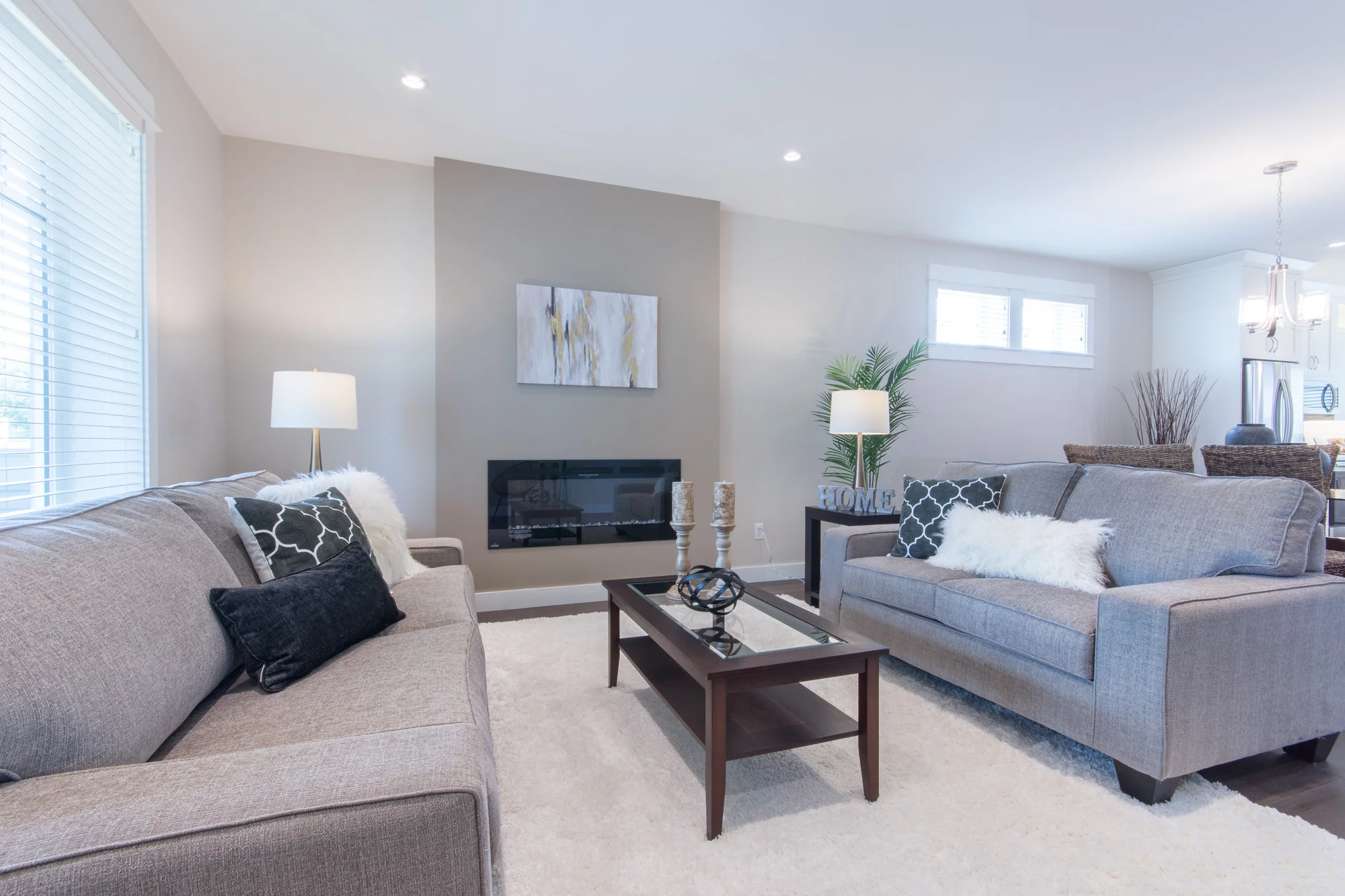

Upper Unit - Livingroom
Upper Unit - Kitchen

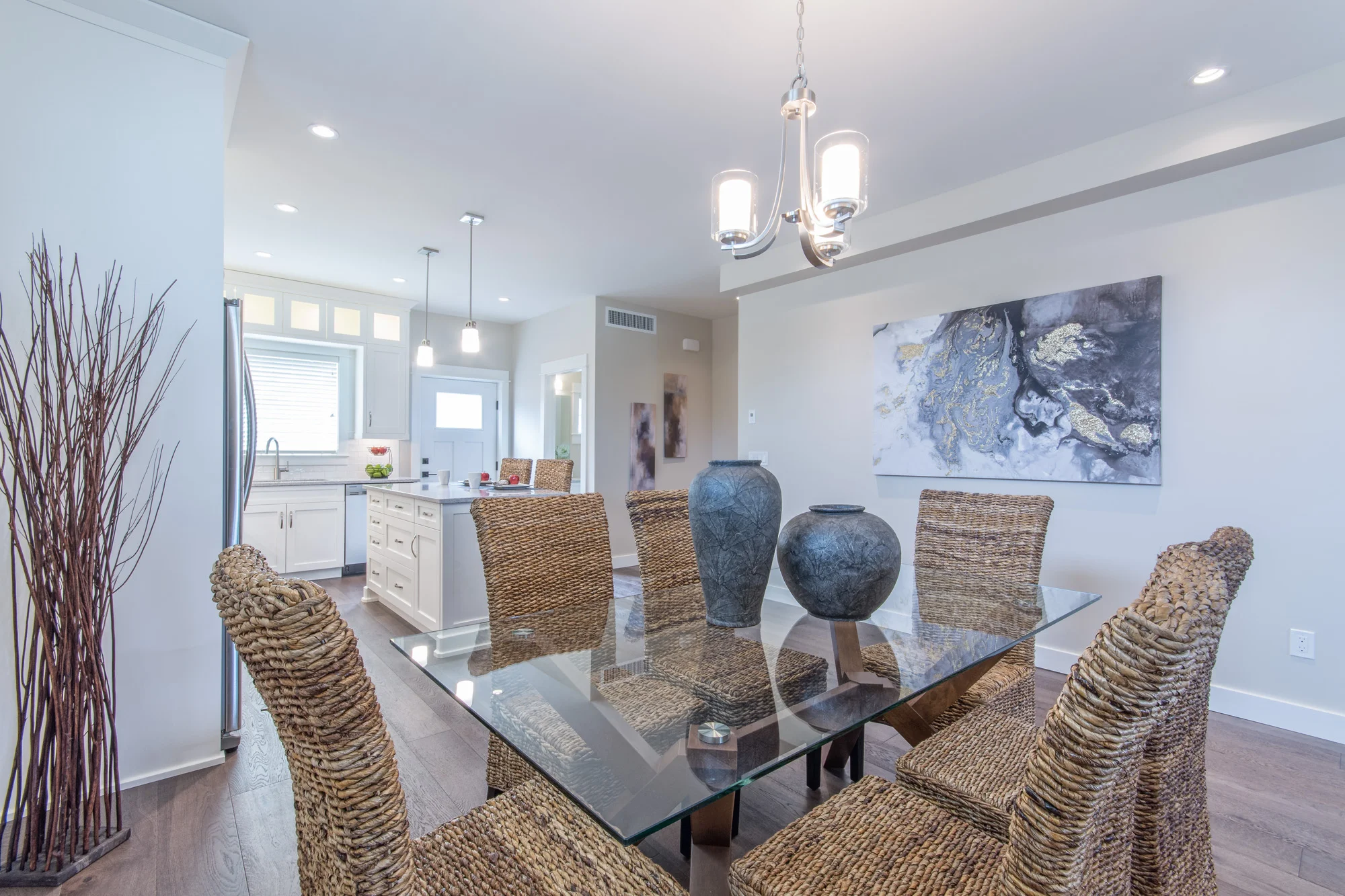

Upper Unit - Dinning Room

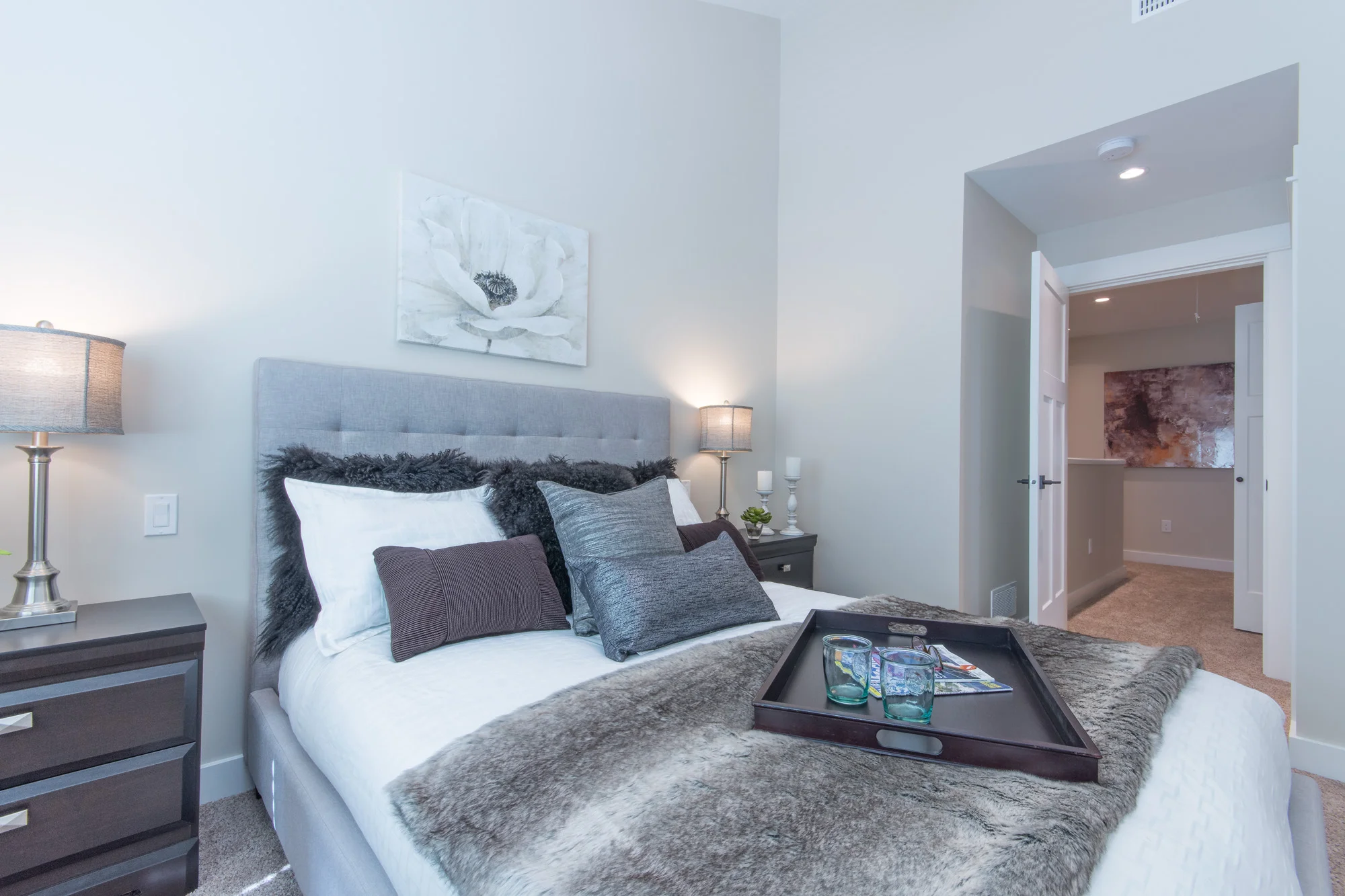

Upper Unit - Master Bedroom

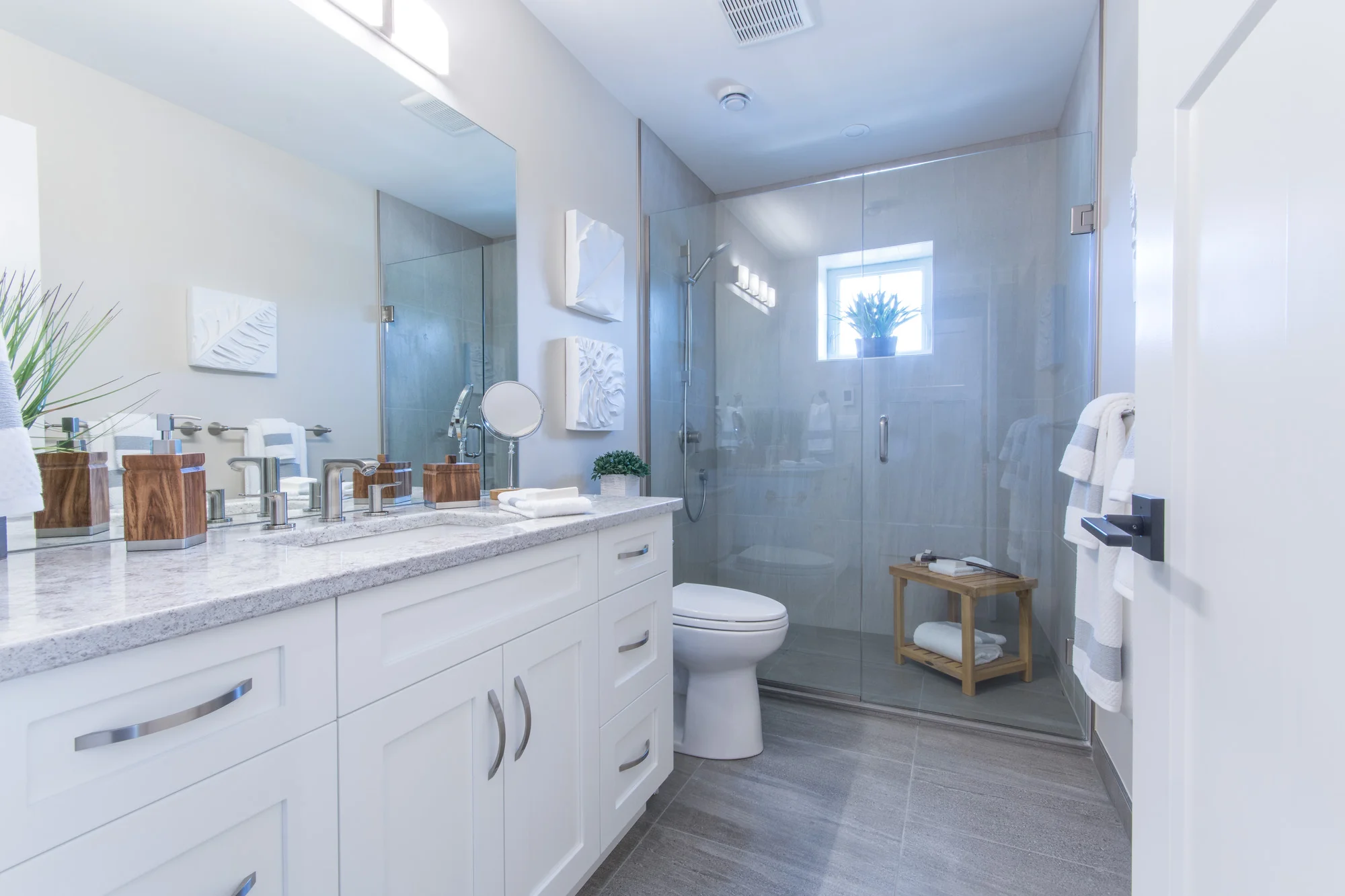

Upper Unit -Ensuite Bathroom
Rosemary Manor Features
Building Features
Insulated Concrete Form (ICF) Construction including a full height ICF party wall
Comslab 4 inch concrete floor system with additional Homosote 440 Sound board between stacked units
Concrete entry staircase and powder coated aluminum hand railings
James Hardie Artisan Colorplus Siding and Shingles
Interior Features all Units
Solid core passage doors
Painted wood trim moulding (no mdf)
Benjamin Moore Paints throughout
Solid Quartz countertops with custom cabinetry throughout
Energy Star stainless steel appliances - range, fridge, dishwasher and all in one microwave range hood
Laundry area - front load washer and dryer and custom cabinetry
LED Lighting throughout
Westcoast Windows that feature Low E366 coating to block 85% of the fading spectrum of UV rays. All openers have a triple gasket and multipoint locks for greater air tightness.
Custom tiled walk in shower, 10mm frameless shower glass, Hansgrohe fixtures and heated floors.
7.5 “ wide plank engineered hardwood with cork underlay
2” wood blinds with routless holes for added privacy
Unique Features to Lower Units
970 Square Foot Luxury Two Bedroom One Bath
Detached 6 ft x 8 ft Storage Unit
225 square Foot stamped concrete private patio
Private Surface Parking Stall
Energy efficient Heat Recovery Fresh Air System and a Mitsubishi Ultra high efficiency variable speed heat pump & A/C forced air system.
Unique Features to Upper Units
1460 Square Foot Luxury Two Bedroom 2.5 Baths
290 Square Foot detached insulated one stall garage
400 Square Foot south facing stamped concrete private patio
164 Square Foot Front Porch
Large Attic Storage space with pull down ladder
Energy efficient Heat Recovery Fresh Air System and a Mitsubishi Ultra high efficiency variable speed heat pump & A/C forced air system with 2 separate temperature control s, 1 for top floor and 1 for main floor.
Mohawk Smart Strand Carpet throughout bedrooms and upper floor hallways
Rosemary Manor -Bottom Floor - Units 1 and 2
Rosemary Manor - Main and Upper Floor - Units 3 and 4
We begin with a clean dry excavation site and perforated drain tile for added drainage security
The perforated Drain Tile is then covered with 6 inches of drain rock
Once our perfectly level footings are poured we then add another 10 inches of drain rock.

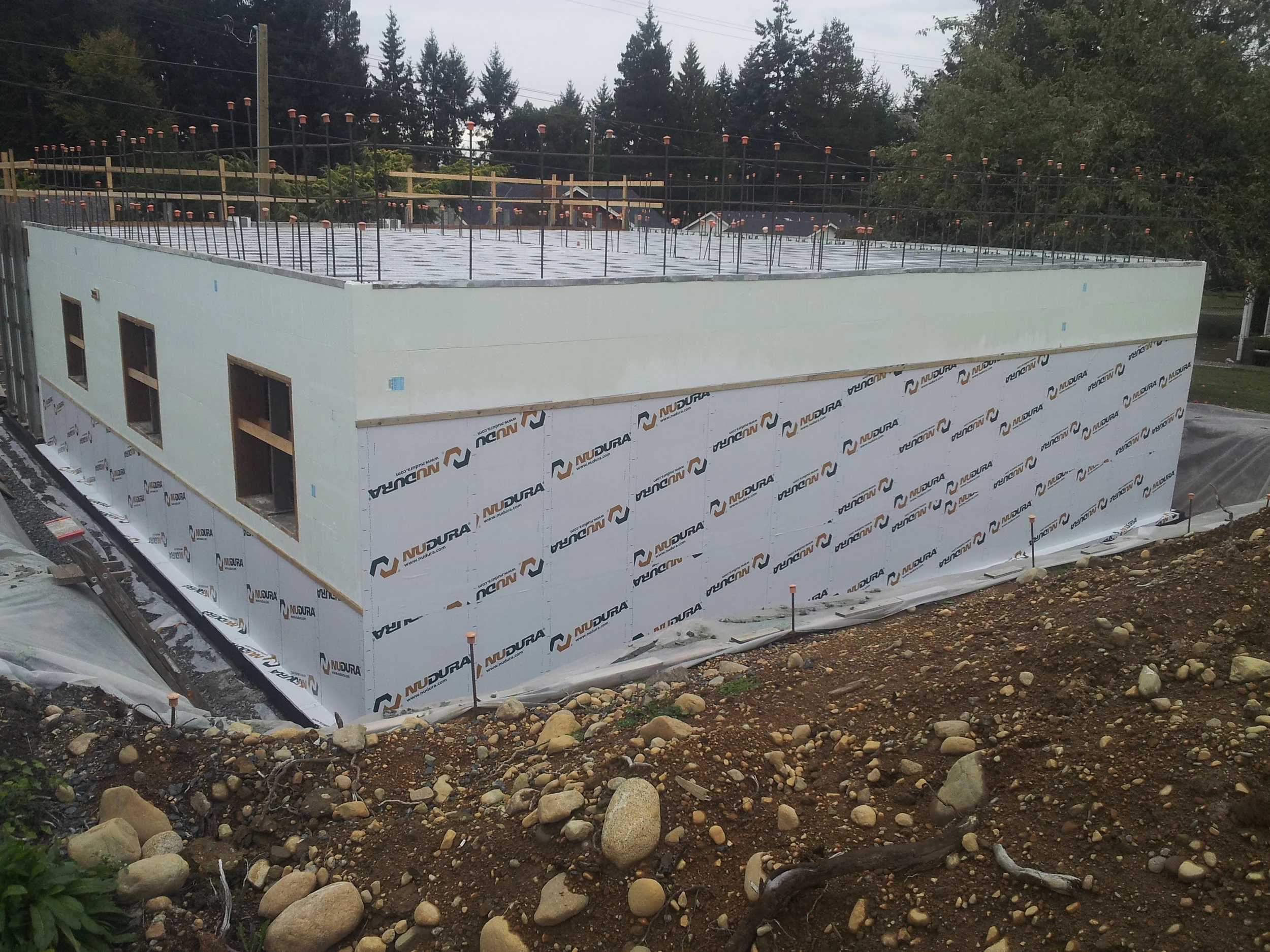

The Insulated Concrete Form blocks are then assembled and these blocks are filled with 6 inches of concrete. Independent Third Party Testing now supports that these walls perform to an R40 level.
Winter Grade Peel n Stick is then applied as a water proof barrier below grade
The Peel N Stick is then further protected from punctures by a Dimplex membrane
The Comslab floor system is then attached and poured to a 4 inch thickness in the field and 11 inches in the V beams
Another picture of the Comslab tray system and the steel rebar reinforcement

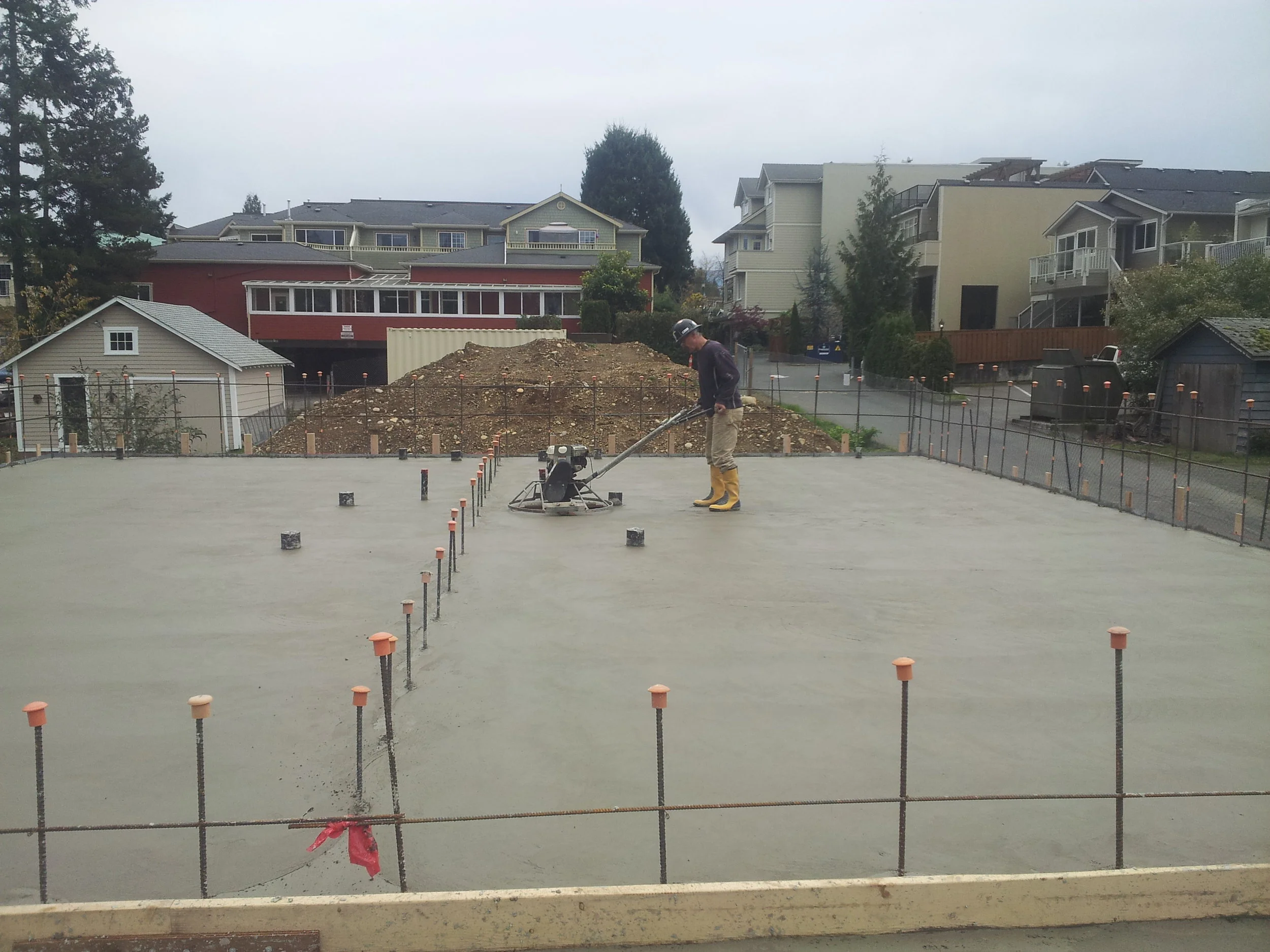

The Comslab floor system immediately after concrete placement

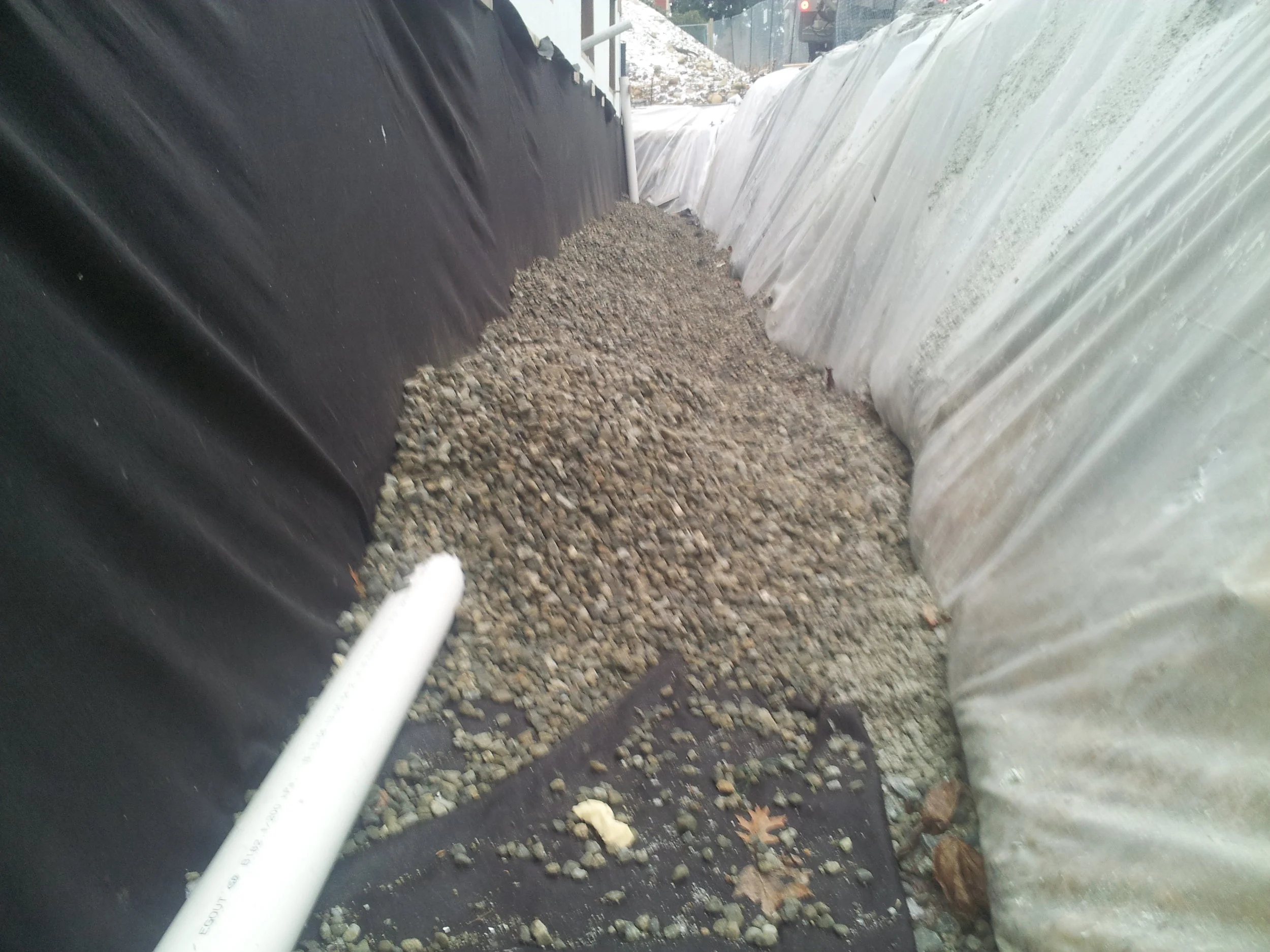

Perimeter drain tile and filter fabric cover that is draped over the rock before backfill. This prevents sediments from potentially clogging the perforated pipe
And so begins the next floor of ICF.

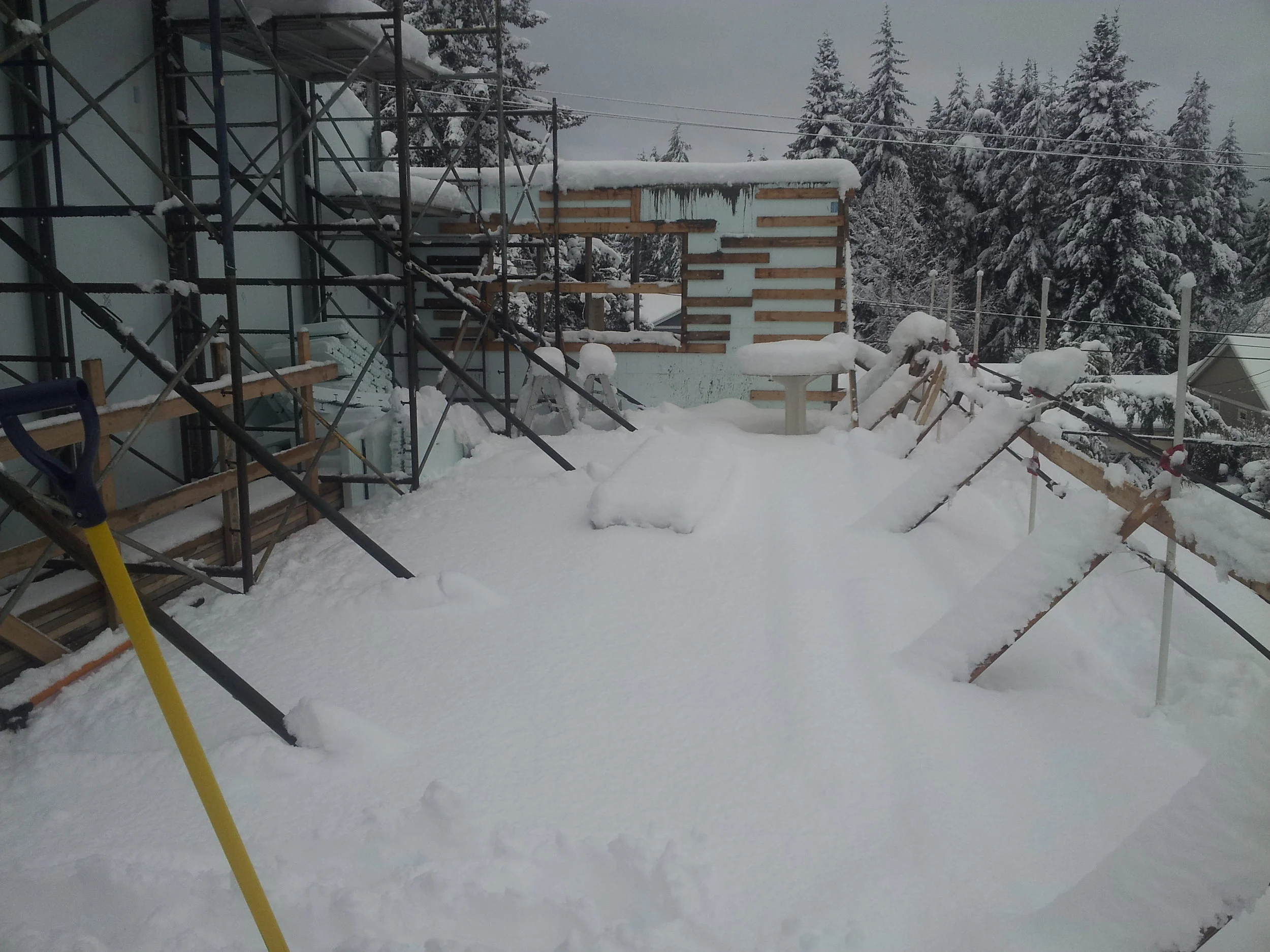

No worries around winter construction and potential moisture related problems such as mould and rot.
Rosemary Manor now starting to look like the lovely Gal she is. James Hardie Artisan Siding and Shingles are being attached here.
